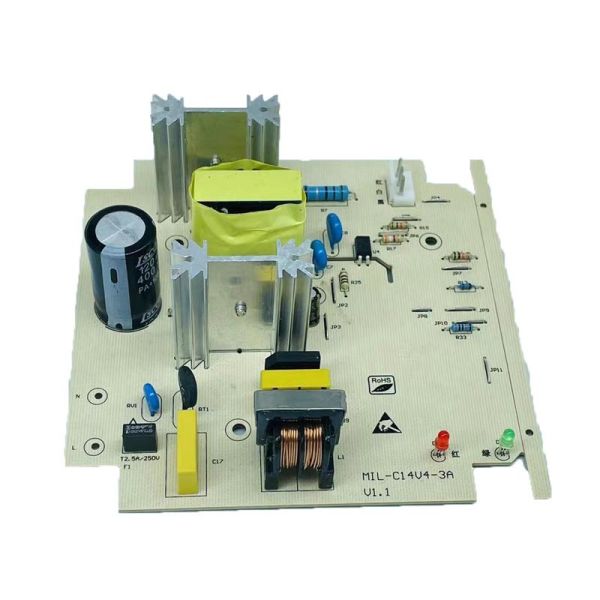

    Polyimide PTFE Multilayer PCBs Immersion Silver Turnkey PCBA

    Ask Lasest Price
    Brand Name : CKS
    Model Number : CKS-Customized
    Certification : ISO9001
    Price : USD 0.25-0.35
    Payment Terms : L/C, Western Union, MoneyGram, T/T
    Supply Ability : 300000 Pieces per Month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Polyimide PTFE Multilayer PCBs Immersion Silver Turnkey PCBA

    Original Branded Customized Electronic Circuit Board Assembly PCBA Manufacturer Multilayer PCB


    Quick Details:

    Model Number:
    PCB/PCBA
    Type:
    Multilayer pcb
    Place of Origin:
    Guangdong, China
    Brand Name:
    CKS Technology
    Number of Layers:
    2 - 32 Layers
    Base Material:
    FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers
    Copper Thickness:
    0.4-2mil(10-50um)
    Board Thickness:
    0.2-6mm
    Min. Hole Size:
    0.1mm(4mil)for HDI / 0.15mm(6mil)
    Min. Line Width:
    0.075mm/0.075mm(3mil/3mil)
    Min. Line Spacing:
    0.003''
    Surface Finishing:
    HASL/OSP/Ag/ENIG/ENEPIG/Immersion silver/Tin
    Board Size:
    Custom
    Product name:
    PCB
    Application Area:
    Automotive, Medical, Industry, IOT, Smart Home, security equipment,
    Capacity:
    70 million placements per month
    Max board size:
    457 * 356(18'' * 14'')
    Speed:
    0.15sec/chip,0.7sec/QFR
    Wave soldering:
    2
    Max board width:
    400mm

    Specification

    Layer count
    1-40L
    Board thickness
    8.27-275.8mil (0.21-7.0mm)
    Material
    FR4 SHENGYI / S1170, ITEQ / IT180 and related PP
    Surface Finish
    Leaded HAL, Lead free HAL, ENIG, OSP (Entek), Immersion Tin, Immersion Silver, Hard Gold(50u")
    Soldermask colors
    green, yellow, black, blue, matte, semi-matte, transparent LPI solder mask and peelable soldermask
    Min. Trace Width/Space
    2/2mil
    Min. Hole Size
    0.15mm/6mil (mechanical drill), 0.1mm/4mil (laser drill)
    Min. Annular Ring
    4mil
    Max. Finished Copper Thickness
    10 OZ
    Aspect ratio
    16:1
    Packing
    Vaccum Packing

    Factory & Production Lines:

    Polyimide PTFE Multilayer PCBs Immersion Silver Turnkey PCBA

    Polyimide PTFE Multilayer PCBs Immersion Silver Turnkey PCBA
    Polyimide PTFE Multilayer PCBs Immersion Silver Turnkey PCBA
    Polyimide PTFE Multilayer PCBs Immersion Silver Turnkey PCBA

    Polyimide PTFE Multilayer PCBs Immersion Silver Turnkey PCBA
    Polyimide PTFE Multilayer PCBs Immersion Silver Turnkey PCBA
    Polyimide PTFE Multilayer PCBs Immersion Silver Turnkey PCBA
    Polyimide PTFE Multilayer PCBs Immersion Silver Turnkey PCBA

    FAQ

    Customer: Are you a factory ?
    CKS: yes, we are a professiongal manufacturer factory of Consumer electronics products.
    Our factory is located in Floor 3rd to 4th, K Building,Jinchangda Science and Technology Park,Shangwei Villiage, Zhangkengjing Community ,Guanlan Street, Longhua District,Shenzhen, Guangdong, China,518105. We warmly welcome you to visit our factory.


    Customer: What is your price terms?
    CKS: Normally FOB(free on board), CIF(cost insurance and freight), EX-work.


    Customer: which payment terms do you accept?
    CKS: we usually accept the following payment terms T/T, western union, money gram, Paypal, and if a Larger amount, we also accept L/C and so on. you can also tell us about your payment way !


    Customer: Can you produce the goods as customer design?
    CKS:Welcome to send us the design or sample, we will calculated the cost and unit price for you as soon as possible.


    Customer: What is your MOQ. And how long is the delivery time?
    CKS: Our MOQ is 1pc, We usually have in stock if the quantity is no more than 3000pcs, If you order is over 3000pcs, We need work days to prepare the goods, so it means when received you deposit we can deliver the goods to you in 7days.


    Customer: How about the products packing?
    CKS: Flexible packing according to the specific requirements of the clients.
    Welcome to visit CKS . Please feel free to contact us .
